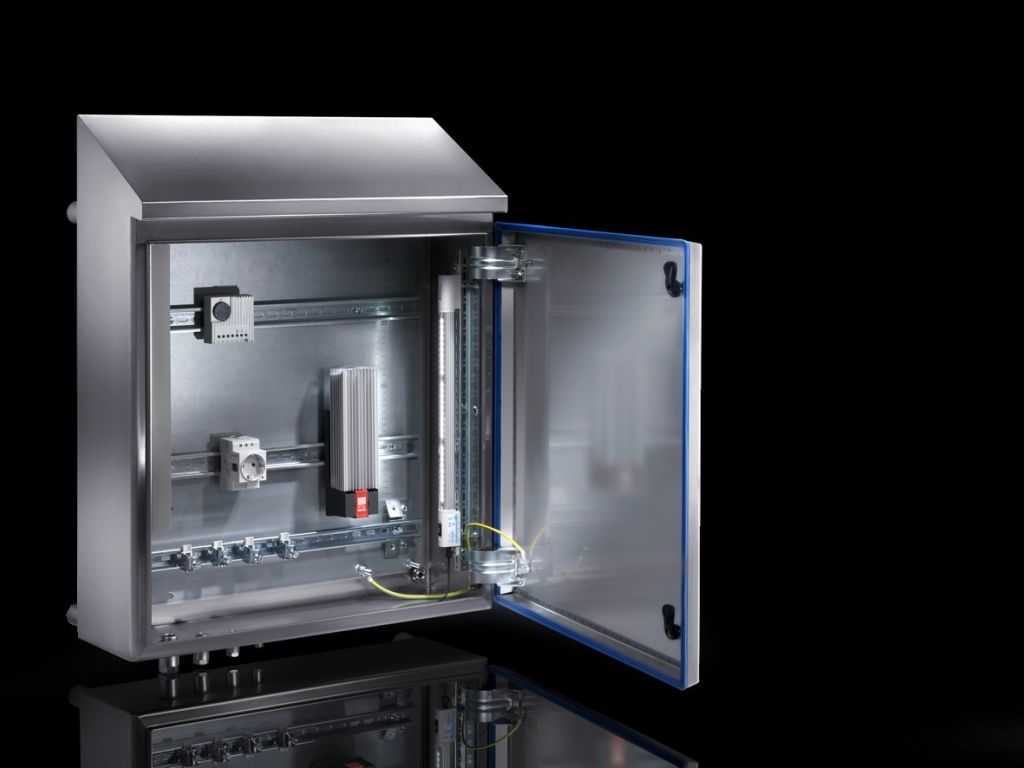

HD system enclosure
Flexible, bayable large enclosure solution for hygienically sensitive areas which are subject to regular cleaning
- The enclosure with lock fittings within the sealed space is ideally equipped for all HD applications in conjunction with corresponding HD and system accessories
- Enclosure and door: Stainless steel 1.4301 (AISI 304)
- Lock insert HD: Stainless steel 1.4404 (AISI 316L)
- Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
- Seal: Blue, dyed (RAL 5010)
- Mounting plate: Sheet steel, zinc-plated
HD air-water heat exchangers
Hygiene-compliant HD air-water heat exchangers in the production zone
- Air-water heat exchanger for hygienically sensitive production zones in the food and beverage industry
- An optimum addition to the Rittal Hygienic Design enclosure range
- The cleaning-friendly design reduces the risk of contamination and ensures food safety
- A roof tilt of 30° prevents objects from being deposited on it, and allows liquids to run off quickly
- All-round external, replaceable silicone seal prevents the accumulation of dirt between the enclosure and the air-water heat exchanger.
Fire extinguisher enclosure HD
Hygiene-compliant enclosures for fire extinguishers in the production hall
- Hygienic, hose-proof storage of fire extinguishers
- Time and cost savings thanks to simple, effective cleaning options
- Fire extinguisher is easily removed with one hand thanks to the T handle
- Quick inventory check with the integral viewing door
Blue e+ chiller
Demand-based cooling thanks to innovative DC inverter technology
- Output range 1 to 6 kW
- Excellent control accuracy
- Reduces the volume of refrigerant with a microchannel heat exchanger
- Increased temperature operating temperature range from -5 °C to +50 °C
- Integral security functions (flow sensor, fill level monitoring, overflow valves)
Compact enclosure HD
- Stainless steel enclosure solution tailored to the requirements of the food and beverage industry
- A roof tilt of 30° prevents objects from being deposited on it, and allows liquids to run off quickly
- Hinges inside the sealing zone create an exceptionally easy-clean design on the outside
- The durable, all-round external silicone seal in accordance with FDA guideline 21 CFR 177.2600 eliminates all gaps
Terminal box HD
Gate controller with HD terminal box
- Stainless steel enclosure solution tailored to the requirements of the food and beverage industry
- All-round gap-free silicone seal between enclosure and cover
- Hygiene-compliant quick-release hexagon fasteners
- Enclosure inclined forwards by 3° to prevent liquids accumulating during and after cleaning
- The durable, all-round external silicone seal in accordance with FDA guideline 21 CFR 177.2600 eliminates all gaps
