Basic enclosure AX, sheet steel

Compact enclosure AX

  • In the variant 'Sheet steel'
  • Global approvals (e.g. UL, DNV-GL etc.)
  • Complies with protection category up to IP66 & NEMA 4
  • Secure cable routing meets high protection category standards
  • Standard gland plates are easily replaced
  • Integral perforated door strips create additional mounting space
  • Suitable mounting options for any installation site or for simply hanging on walls and flat surfaces
System windows

System windows

  • Rittal system windows for individual use
  • To conceal display and operating instruments or cut-outs, and to protect against dirt and liquids as well as unauthorised access
  • Frame section height 30 mm or 60 mm
TopTherm fan-and-filter units

TopTherm fan-and-filter units

  • Air throughput from 20 – 900m³/h
  • New diagonal fan technology for greater pressure stability and constant air throughput in its installed state, even with a contaminated filter mat
  • Tool-free assembly, maintenance and replacement
  • Air flow direction may be reversed from blowing (default setting) to extracting
  • Also available in RAL 9005 and in EMC and EC variants
  • Pleated filters may optionally be used for improved air throughput, reduced energy consumption and superior filtering properties.

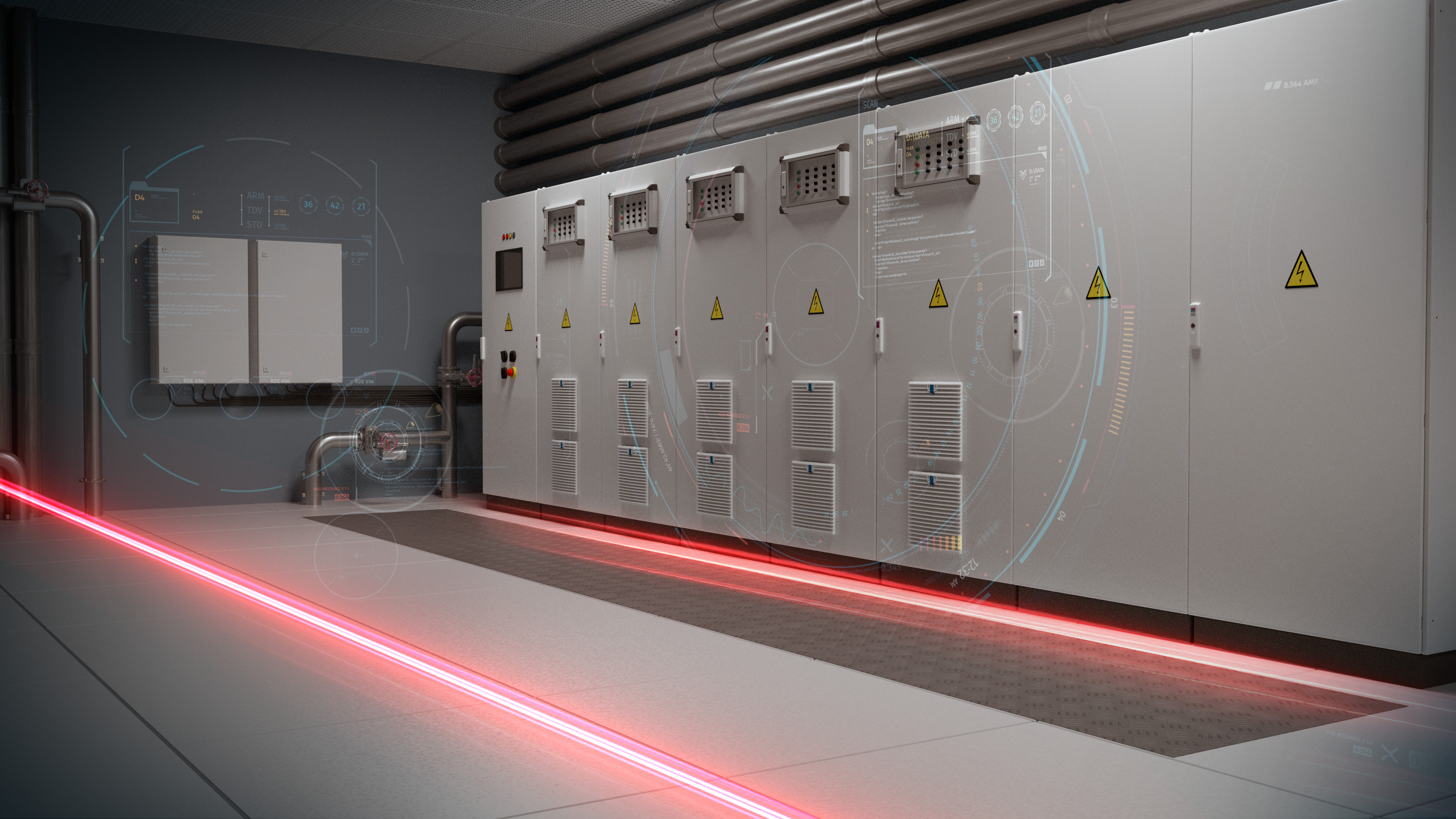

Bayed enclosure system VX25

VX25 baying systems – the system platform for almost any application

  • When combined with carefully selected system accessories, every enclosure is transformed into a dedicated specialist
  • Simple project management
  • Efficient configuration
  • Consistent engineering (digital twin)
  • Unique symmetry
  • Option of mounting directly from outside
  • Enhanced room efficiency
  • Infinite baying potential
  • Optionally in sheet steel or stainless steel
Ri4Power

VX25 Ri4Power

  • The tested complete solution – Enclosure and bar system
  • Modular system for low-voltage switchgear
  • Design verification to IEC/DIN 61 439, tested and documented
  • Fast configuration and selection assisted by the Power Engineering planning software
  • Technical support from Rittal
  • Significantly reduced planning, ordering and assembly times
  • Licence-free modular system
  • Standardised system solutions
