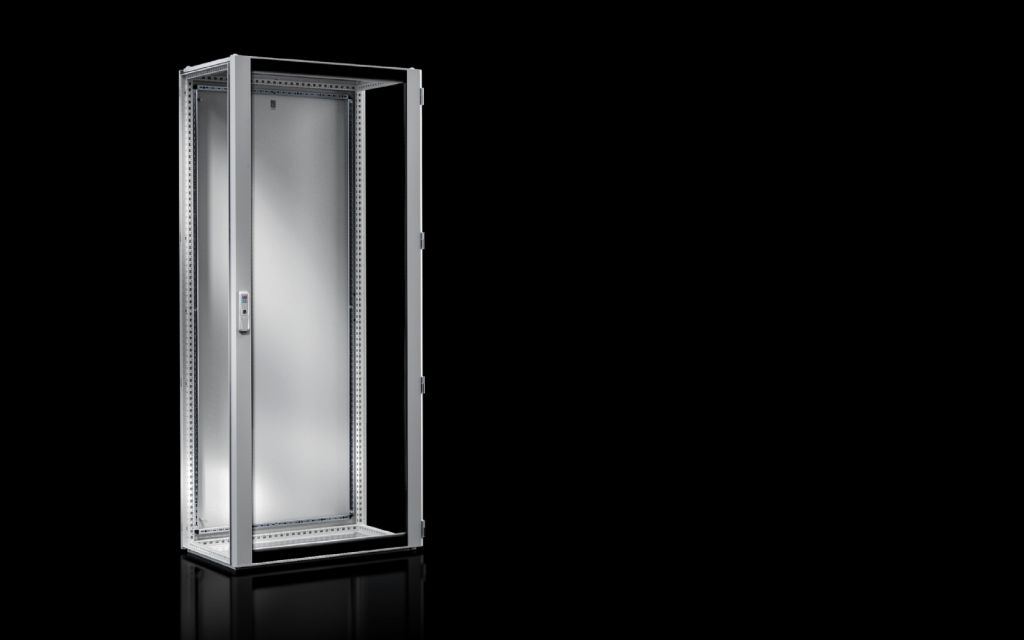

Baying enclosure system VX25 Basic enclosure with glazed door/Swing frame
Baying system VX25 with visible door/swinging frame
- With an aluminum viewing door at the front with an opening angle of 180° and carbon steel door at the rear with an opening angle of 130°
- Simplified and consistent baying technology for all applications

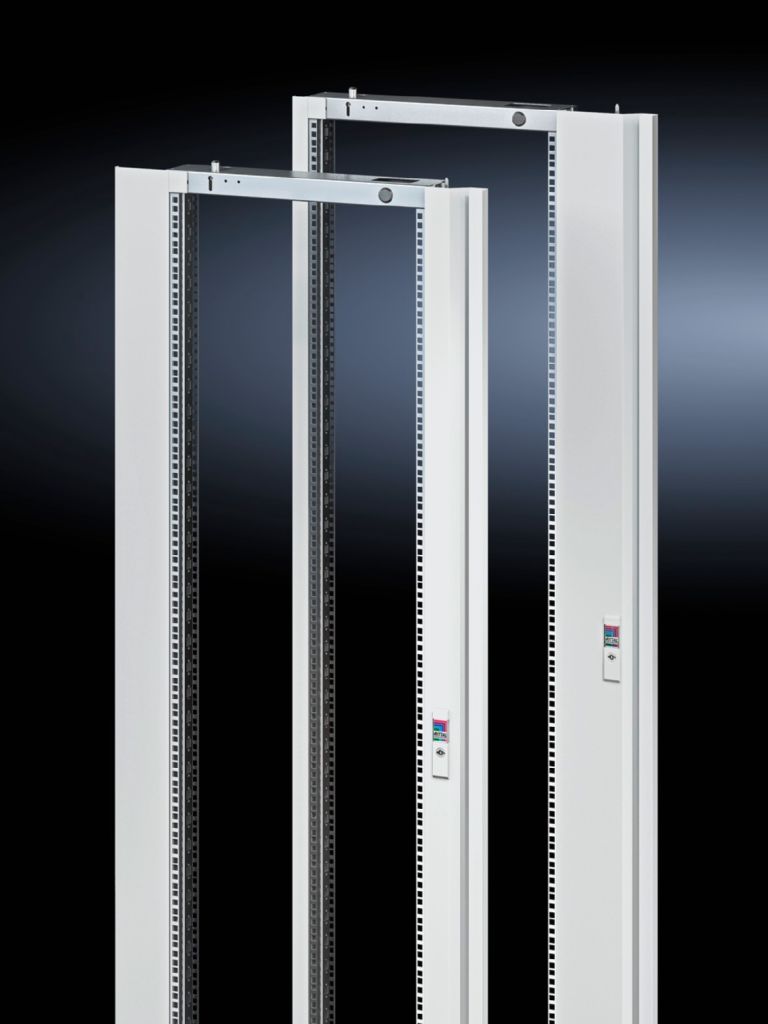

- Optionally with swivel frame for easy full or partial expansion for 19" components
- The swivel frame can be placed in the enclosure at any height or depth in the 25 mm dimensional grid
CS Toptec
Outdoor Basic enclosure
Cast aluminum housing GA
Baying systems TS 8
TS 8 modular, free-standing bayable enclosures
Ingeniously simple, fully symmetrical, and patented worldwide. This is the successful formula behind Rittal’s TS 8 bayed enclosure system
- Rittal’s modular design allows for efficient system updates, flexible baying options and virtually endless configurations, all based on a robust 16-fold tubular frame system
- The frame can hold weight loads up to 1,500 lbs. on the mounting panel and features multi-level mounting capability for unsurpassed flexibility
- The 25 mm hole pattern allows components and accessories to be mounted in three directions – by height, width and depth – which provides maximum space utilization (up to 30 % more available space than traditional NEMA style enclosures of equal dimension)
- The door is strengthened with an attached frame which includes holes on a 25 mm pitch pattern for the attachment of ducts, cable harnesses, wiring plan pockets and much more
- The gasketed roof is secured with removable eyebolts that screw directly to the enclosure frame to seal out dirt and moisture
