TopTherm Filter Fan Units
TopTherm Filter Fan Units
- Air throughput from 20–900 m³/h
- New diagonal fan technology for greater pressure stability and constant air throughput in its installed state, even with a contaminated filter mat
- Tool-free mounting, servicing and replacement
- Air flow direction can be changed from blowing (standard) to sucking
- Also available in RAL 9005 and in EMC and EC versions
- Optional pleated filters can be used to improve air performance, reduce energy consumption and improve filter performance

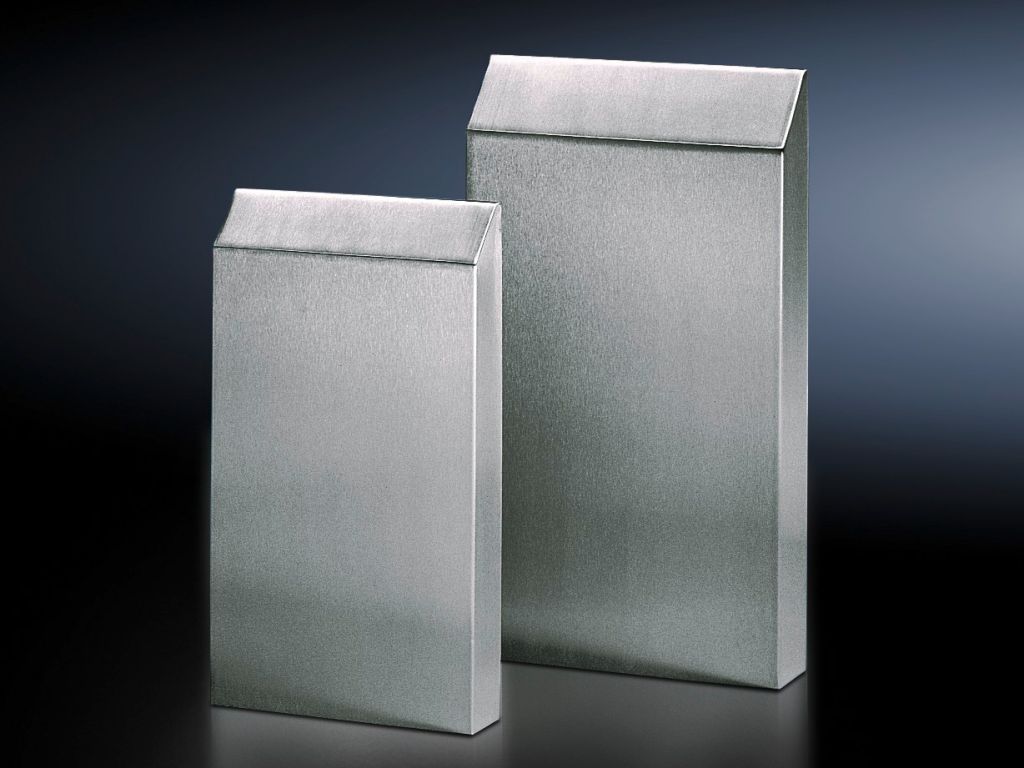

Hose-proof hood
Hose-proof hood
- Particularly for applications in the food industry, the hose-proof hood prevents the ingress of damp
- for fan-and-filter units / outlet filters
- The protection category IP 56 is achieved in conjunction with a standard filter
- Easy cleaning thanks to exterior silicone coating approved for use with foodstuffs
Baying enclosure system VX25, stainless steel
Large enclosure system VX25, stainless steel
Central machine controller or power distributor with VX25 stainless steel enclosure system
- VX25 baying systems – the system platform for almost any application
- Each enclosure, in combination with selected system accessories, is specialized for its tasks
- Simple project management
- Efficient configuration
- Consistency in engineering (digital twin)
- Unique symmetry
- Direct mounting option from outside
- Improved space efficiency
- Infinite baying potential
Small and compact enclosures
Compact enclosure, stainless steel
Gate control with AX stainless steel enclosures
- Worldwide approvals (e.g. UL, cUL, CSA)
- Protection category up to IP 66 and NEMA 4/4X is fulfilled
- Safe cable entry, which also withstands a high protection category requirement
- Suitable mounting options for any installation site or for simply hanging on walls and flat surfaces
Compact enclosures
AX Wall-mounted, carbon steel
- In the carbon steel version
- Worldwide approvals (e.g. UL, DNV-GL etc.)
- Protection category up to IP 66 & NEMA 4/4X is met
- Safe cable entry, which also withstands a high protection category requirement
- Standard gland plates are easily replaced
- Integrated perforated door strips create additional mounting space
- Suitable mounting options for any installation site or for simply hanging on walls and flat surfaces
TS 8 freestanding enclosures
TS 8 modular, free-standing bayable enclosures, stainless steel
Ingeniously simple, fully symmetrical, and patented worldwide. This is the successful formula behind Rittal’s TS 8 bayed enclosure system
- Rittal’s modular design allows for efficient system updates, flexible baying options and virtually endless configurations, all based on a robust 16-fold tubular frame system
- The frame can hold weight loads up to 1,500 lbs. on the mounting panel and features multi-level mounting capability for unsurpassed flexibility
- The 25 mm hole pattern allows components and accessories to be mounted in three directions – by height, width and depth – which provides maximum space utilization (up to 30 % more available space than traditional NEMA style enclosures of equal dimension)
- The door is strengthened with an attached frame which includes holes on a 25 mm pitch pattern for the attachment of ducts, cable harnesses, wiring plan pockets and much more
- The gasketed roof is secured with removable eyebolts that screw directly to the enclosure frame to seal out dirt and moisture
