- Article number:
- CS 9791.015
- Product description

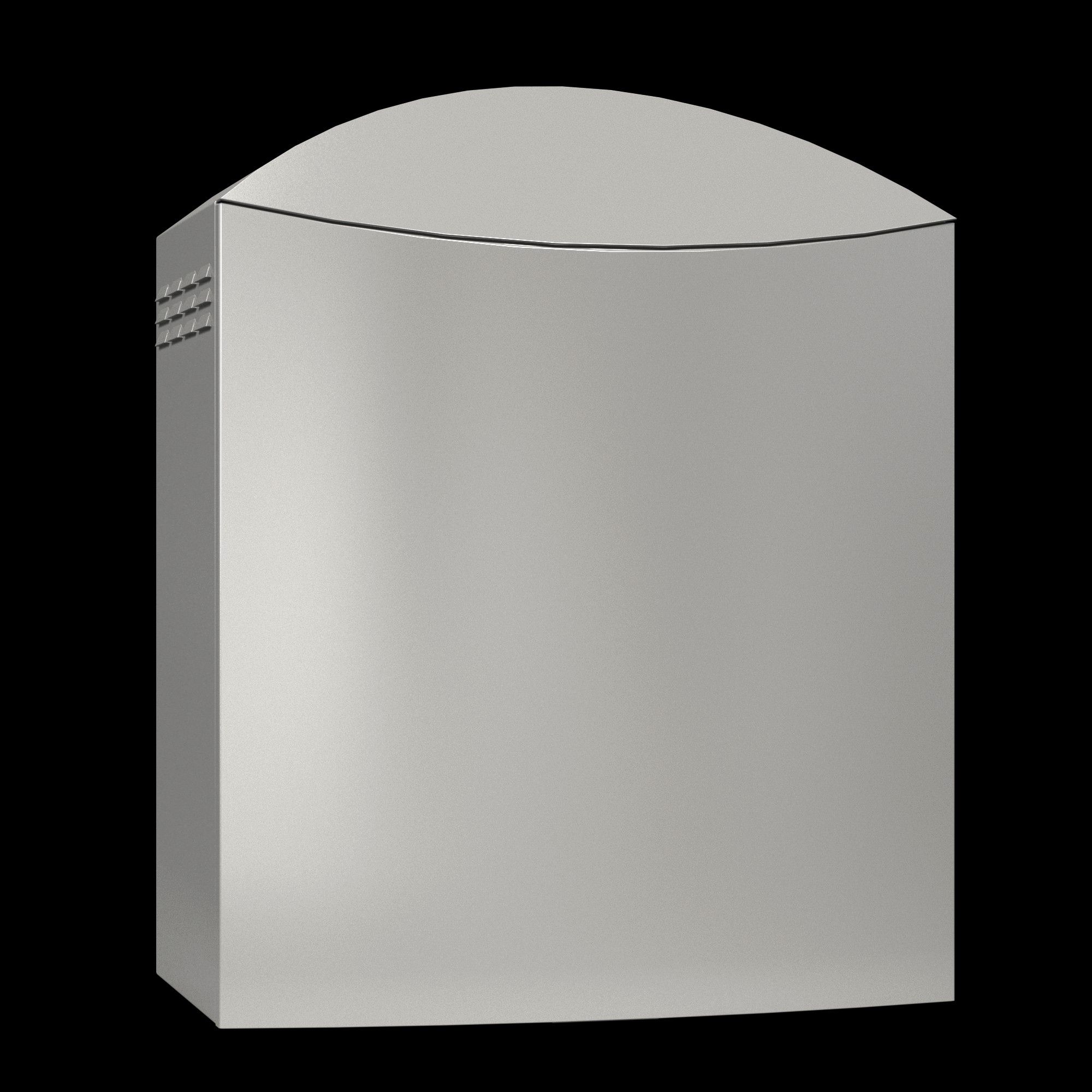

- Outdoor housings for wall or pole mounting. Housing-within-a-housing concept, outer enclosure with cut-out at the bottom and integrated louvers on the rear and side panels for ventilation
- Material
- Enclosure and mounting plate: Aluminum AlMg3
Door inner casing: Stainless steel 1.4301 (AISI 304)
- Surface finish
- Housing: powder-coated, UV-resistant pure polyester
- Color
- RAL 7035
- Supply includes
- Double-walled outdoor housing, fully preconfigured
Inner enclosure with mounting plate, gland plate and security lock
Mounting bracket for enclosure internal thermostat or hygrostat
Outer housing with designer cover and security lock 3524 E
2 C rails on the rear panel
- Dimensions
- Width: 370 mm
Height: 522 mm
Depth: 210 mm( Width: 14.6 ˝
Height: 20.6 ˝
Depth: 8.27 ˝ )
- Clearances
- Clearance width: 280 mm
Clearance height: 380 mm
Clearance depth: 145 mm( Clearance width: 11 ˝
Clearance height: 15 ˝
Clearance depth: 5.71 ˝ )
- Dimensions of mounting plate (W x H)
- 270 mm x 380 mm( 10.6 ˝ x 15 ˝ )
- Inner housing
- Width: 300 mm
Height: 400 mm
Depth: 170 mm( Width: 11.8 ˝
Height: 15.7 ˝
Depth: 6.69 ˝ )
- Lock
- Lock version: Cam
No. of locks: 1
- Protection category IP to IEC 60 529
- IP 55
- Note
- Delivery times on request.
- Base material
- Aluminum
- Packaging unit
- 1 pc(s).
- Net weight
- 8.048 kg
- Gross weight
- 8.472 kg
- Customs tariff number
- 94032080
- EAN
- 4028177193697
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Product description
-
CS Wall-mounted enclosure, WHD: 370x522x210 mm, aluminum, with mounting plate, Enclosure-within-an-enclosure concept
