- Article no.:
- SK 3366140
- Material
- Sheet steel
- Supply includes
- Fully wired ready for connection
Drilling template
Assembly parts - Total cooling output to DIN EN 14511
- Cooling output L35 L35/50 Hz: 1,500 W
Cooling output L35 L35/60 Hz: 1,500 W
Cooling output L35 L50/50 Hz: 980 W
Cooling output L35 L50/60 Hz: 1,080 W - Rated operating voltage
- 400 V, 3~, 50 Hz
- 460 V, 3~, 60 Hz
- Rated current max.
- At 50 Hz: 3 A
At 60 Hz: 3.1 A - Start-up current max.
- At 50 Hz: 8 A
At 60 Hz: 8.8 A - Air throughput (unimpeded air flow)
- External circuit: 910 m³/h
Internal circuit: 860 m³/h - Energy efficiency ratio (EER) 50/60 Hz L35 L35
- Refrigeration factor L35 L35 (EER) 50 Hz: 1.3
- Design
- wall-mounted
- Dimensions
- Width: 435 mm
Height: 1,590 mm
Depth: 205 mm - Protection category to IEC 60 529
- External circuit IP 34
- Internal circuit IP 54
- Refrigerant/cooling medium
- Refrigerant: R134a
Quantity: 0.7 kg - Temperature control
- Basic controller (factory setting +35 °C)
- Operating temperature range
- 20 °C...55 °C
- Setting range
- 30 °C...55 °C
- Power consumption Pel
- Power consumption L35 L35/50 Hz: 1,090 W
Power consumption L35 L35/60 Hz: 1,240 W
Power consumption L35 L50/50 Hz: 1,260 W
Power consumption L35 L50/60 Hz: 1,430 W - Pre-fuse
- Motor circuit-breaker: 6.3...10 A
- Packs of
- 1 pc(s).
- Net weight
- 61.75 kg
- Gross weight
- 65 kg
- Customs tariff number
- 84158200
- EAN
- 4028177429697
- ECLASS 8.0
- 27180704

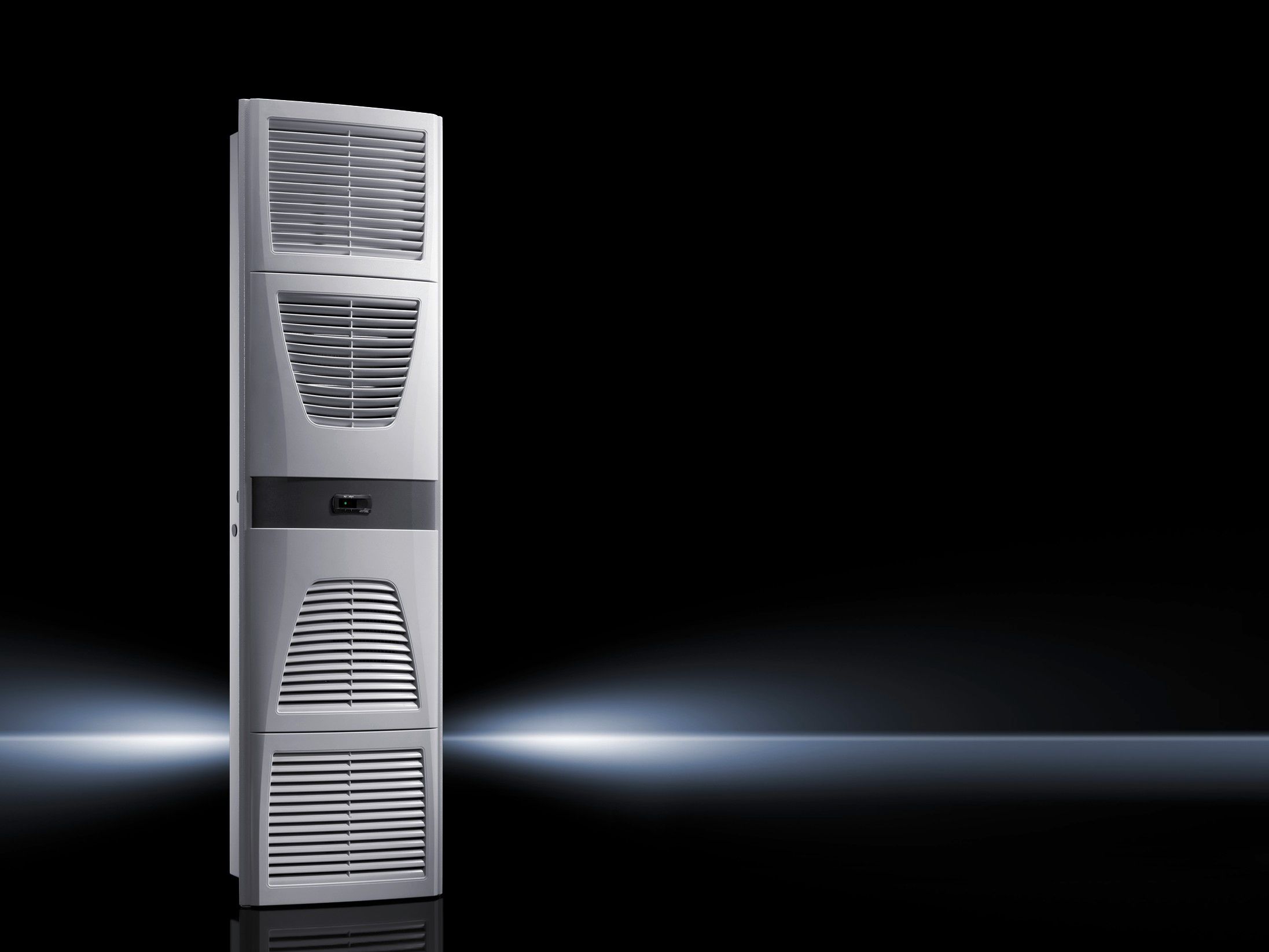

Rittal TopTherm PLUS slimline cooling unit, wall-mount.
with RiNano coating and integral condensate evaporation
Useful cooling output to DIN 3168 L35 L35, 1500/1500 W
Rated operating voltage: 400 V, 3~, 50 Hz - 460 V, 3~,
60 Hz
Power consumption Pel to DIN 3168 L35 L35, 1090/1240 W
Dimensions W x H x D [mm] 450 x 1590 x 195
Refrigerant: R 134 a
Temperature range: 20°C - 55°C (Setting range +30°C to +55°C)
Temperature control and monitoring via basic controller
with floating fault signal contact and connection for
door-operated switch
Factory setting: 35°C
Connection via plug-in terminal strip
Protection category to EN 60 529/10.91
External circuit IP 34 / Internal circuit IP 54
Weight: 46 kg
Colour RAL 7035
with RiNano coating and integral condensate evaporation
Useful cooling output to DIN 3168 L35 L35, 1500/1500 W
Rated operating voltage: 400 V, 3~, 50 Hz - 460 V, 3~,
60 Hz
Power consumption Pel to DIN 3168 L35 L35, 1090/1240 W
Dimensions W x H x D [mm] 450 x 1590 x 195
Refrigerant: R 134 a
Temperature range: 20°C - 55°C (Setting range +30°C to +55°C)
Temperature control and monitoring via basic controller
with floating fault signal contact and connection for
door-operated switch
Factory setting: 35°C
Connection via plug-in terminal strip
Protection category to EN 60 529/10.91
External circuit IP 34 / Internal circuit IP 54
Weight: 46 kg
Colour RAL 7035
