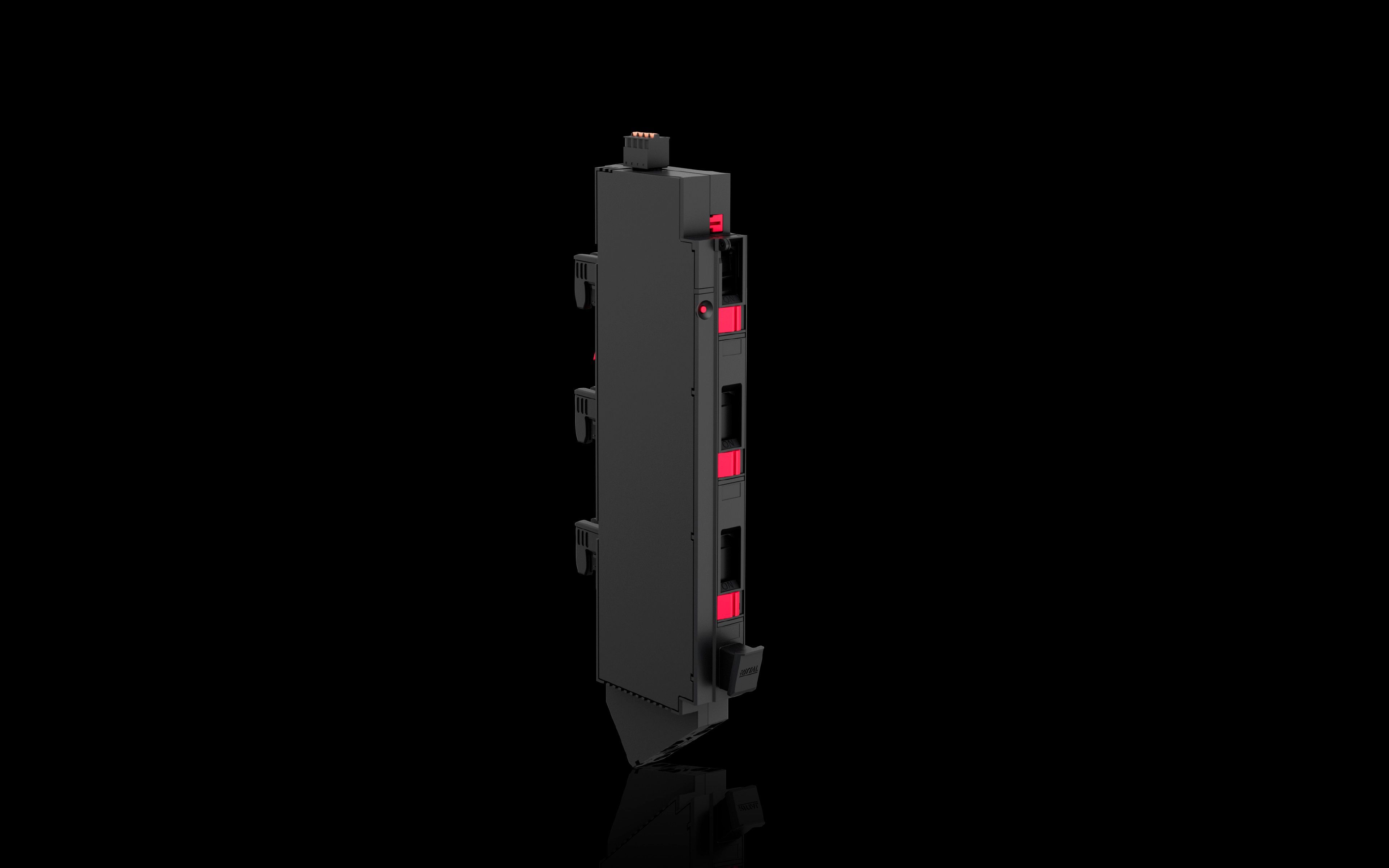

RiLineX fuse holder

Article no.: RX 9364004

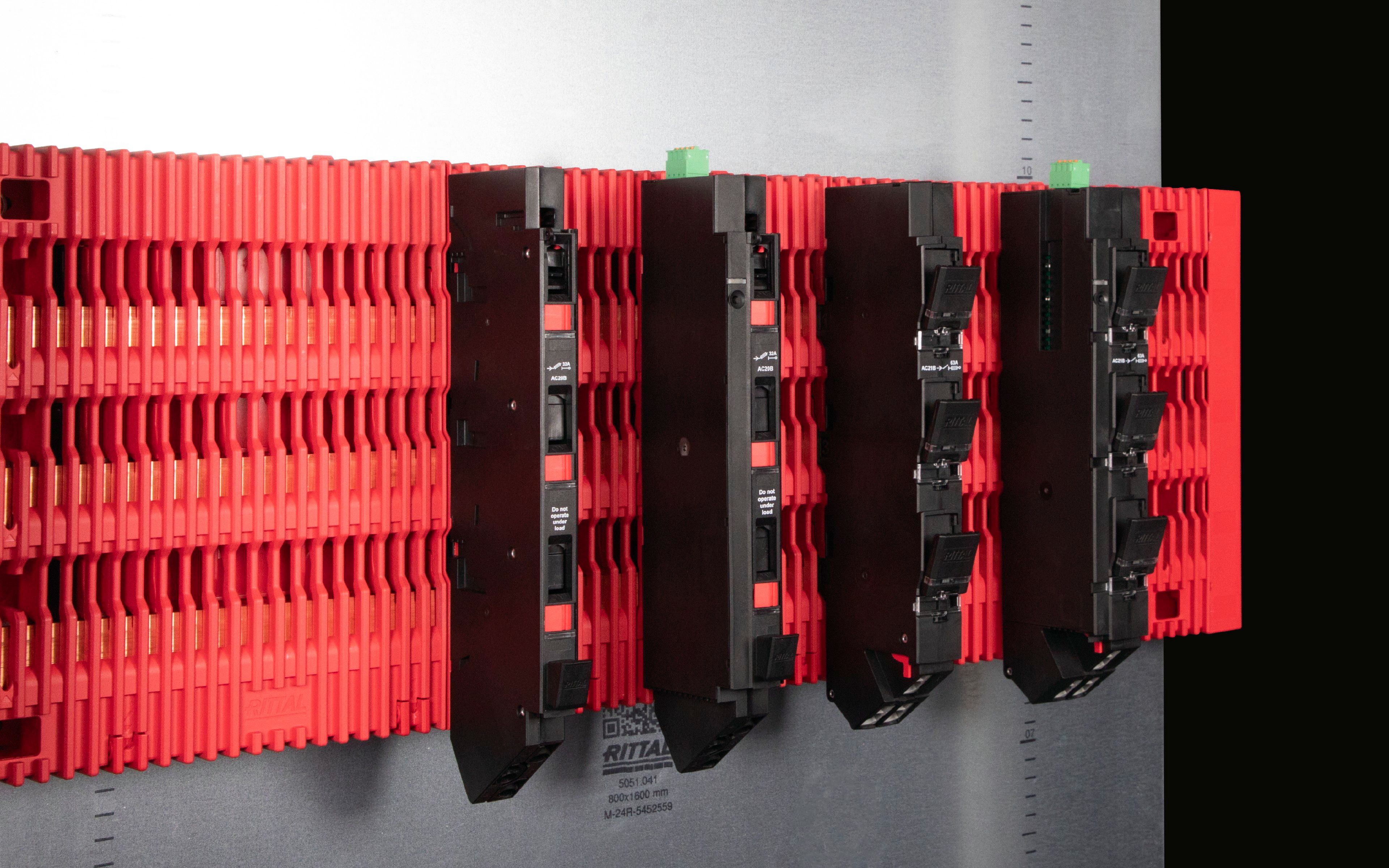

Compact RiLineX class CC fuse holder for 60 mm busbar systems. For class CC cylindrical fuse (30 A) with optical LED fuse monitoring. For reliable contact of cylindrical fuses, the device has special fuse holders that are lockable in the open state and sealable in the closed state. Spring terminal blocks up to 6 mm² at an angle of 45° enable easier conductor connection. The device is suitable for tool-free snap-on mounting with semi-automatic busbar adjustment for 5 and 10 mm. Includes electronic fuse monitoring.

View this page as PDF
Article no.:
RX 9364004
Benefits
Snap-on mounting and simple adjustment for busbar thickness (5/10 mm)
null
null
null
null
null
null
with electronic fuse monitoring
Material
Polyamide (PA 6)
Fire protection corresponding to UL 94-V0
General colour
RAL 9005
RAL 35745
Rated current (max.)
30 A
Type of electrical connection
Spring terminal
Rated operating voltage
600 V AC
Number of poles
3-pole
Dimensions
Width: 27 mm
Height: 263 mm
Depth: 123.5 mm
Connection of round conductors, fine wire with wire end ferrule
1.5 ‐ 6 mm²
To fit busbars
15 x 5/10 mm
20 x 5/10 mm
30 x 5/10 mm
Fuse inserts
null
For fuse type (class)
Fuse Class CC
Packs of
4 pc(s).
Customs tariff number
85369095
Documentation
Safety instructions
RiLineX Bus-mounting fuse base (Typ Fuseholder with EFM)

Bus-mounting fuse base for
class CC cylindrical fuse.
Fuses insters are operated individually or
collectively via a front slide.
Optical fuse monitoring with LED.
Conductor connection via tension spring terminals.
Rated voltage 600 V AC.
With UL approval
Product information
Number of poles: 3
Busbar dimensions: 15/20/30 mm x 5/10 mm
Rated current: 30 A
Connection: 1,5 - 6 mm²
Cable outlet: bottom
Feature: Electronic fuse monitoring
Dimensions: 27 mm x 263 mm x 95 mm (WxHxD)
Manufacturer: Rittal GmbH & Co. KG
Type: 9364004
