- Article no.:
- TS 9982223
- Model no.:
- TS IT 42U 2000H0800W1200D LCP READY
- Product description

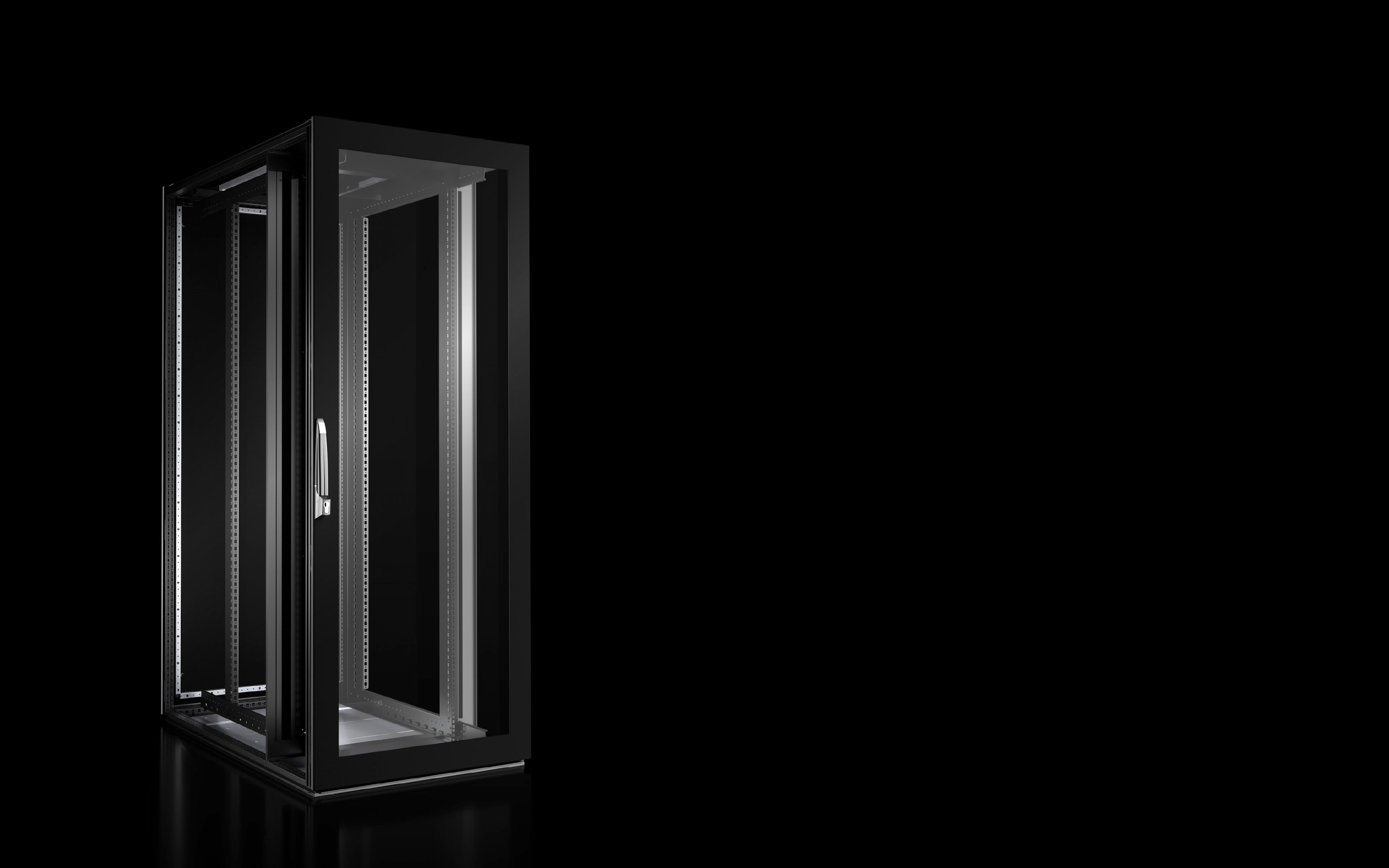

- TS IT LCP Ready, 19" mounting angles, viewing door, WHD: 800 x 2000 x 1200 mm, 42 U
- Material
- Carbon steel
Viewing door: Polycarbonate, 3 mm
- Surface finish
- Enclosure frame: Dipcoat-primed
Interior installation: Dipcoat-primed
Doors and roof: Dipcoat-primed, powder coated
- General color
- RAL 9005
- Color
- Enclosure frame and panels: RAL 9005
Interior installation: RAL 9005
- Supply includes
- Enclosure frame with front and rear door
Viewing door, front, 130° hinges
Carbon steel door rear, closed, one-piece, 130° hinges
Lock front and rear: Comfort handle for semi-cylinders and security lock 3524 E
Front and rear 482.6 mm (19") Z-rail mounting sections, depth adjustable mounting
50 multi-tooth screws M6, captive nuts M6, conductive (supplied loose)
Vertical brush baffles
Roof plate, multi-piece, removable, with full depth side cable entry
Base, gland plate(s)
- Dimensions
- Width: 800 mm
Height: 2,000 mm
Depth: 1,200 mm( Width: 31.5 ˝
Height: 78.7 ˝
Depth: 47.2 ˝ )
- Height units
- 42 U
- Mounting space to 19" level, front/rear
- 100 mm / 363 mm
- Distance between mounting levels
- 742 mm( 29.2 ˝ )
- Design doors
- Closed
- Design of 19" mounting level(s)
- Profile rails, 482.6 mm (19")
- Load capacity
- 15,000 N
- Note
- The door-opening angle may vary depending on site requirements or applications
- Customs tariff number
- 9403200082
- UPC-Code
- 43284
