- Article no.:
- IT 9962852
- Model no.:
- TSIT Colo US 47U 2200H0600W1050D RAL9005
- Product description

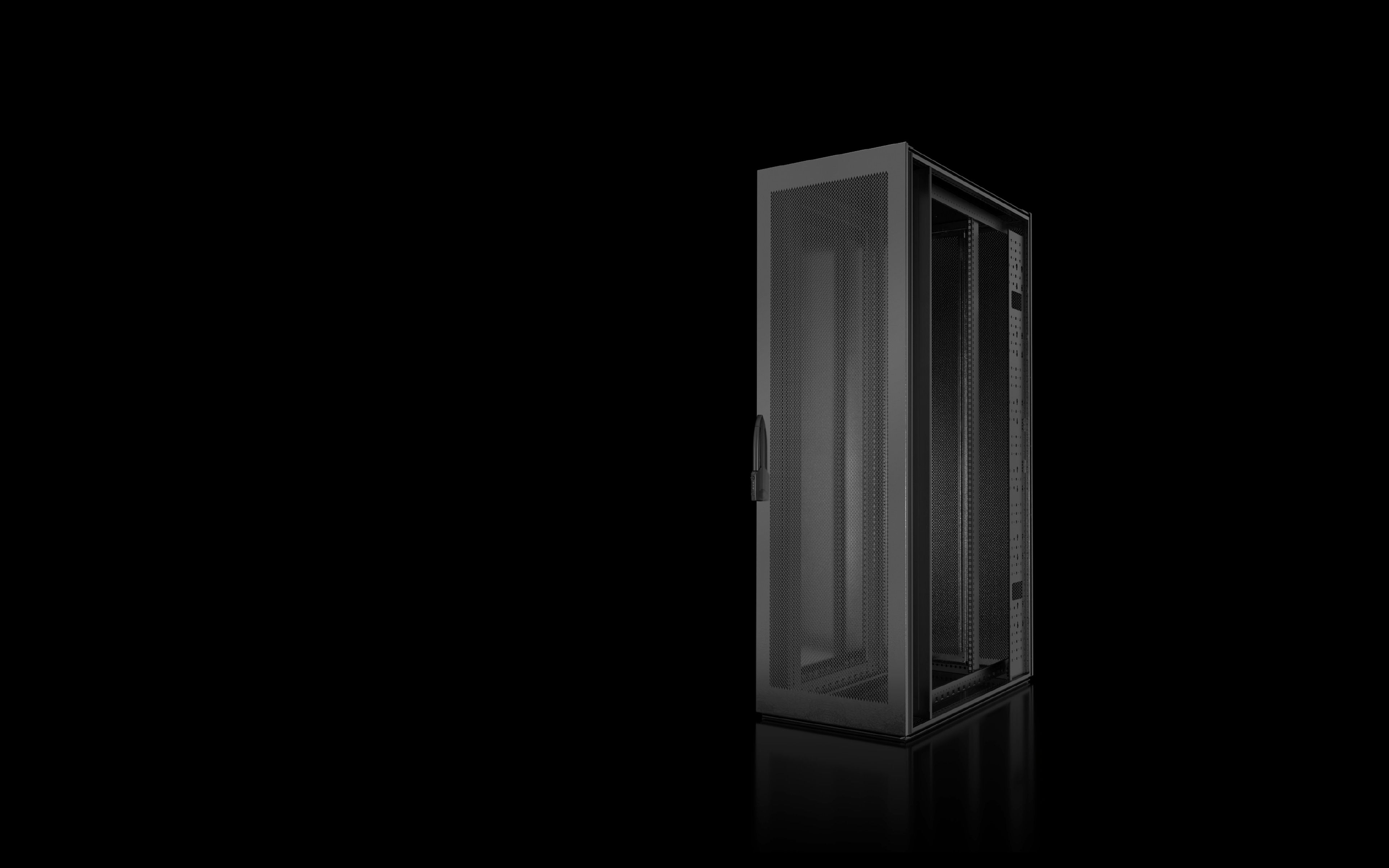

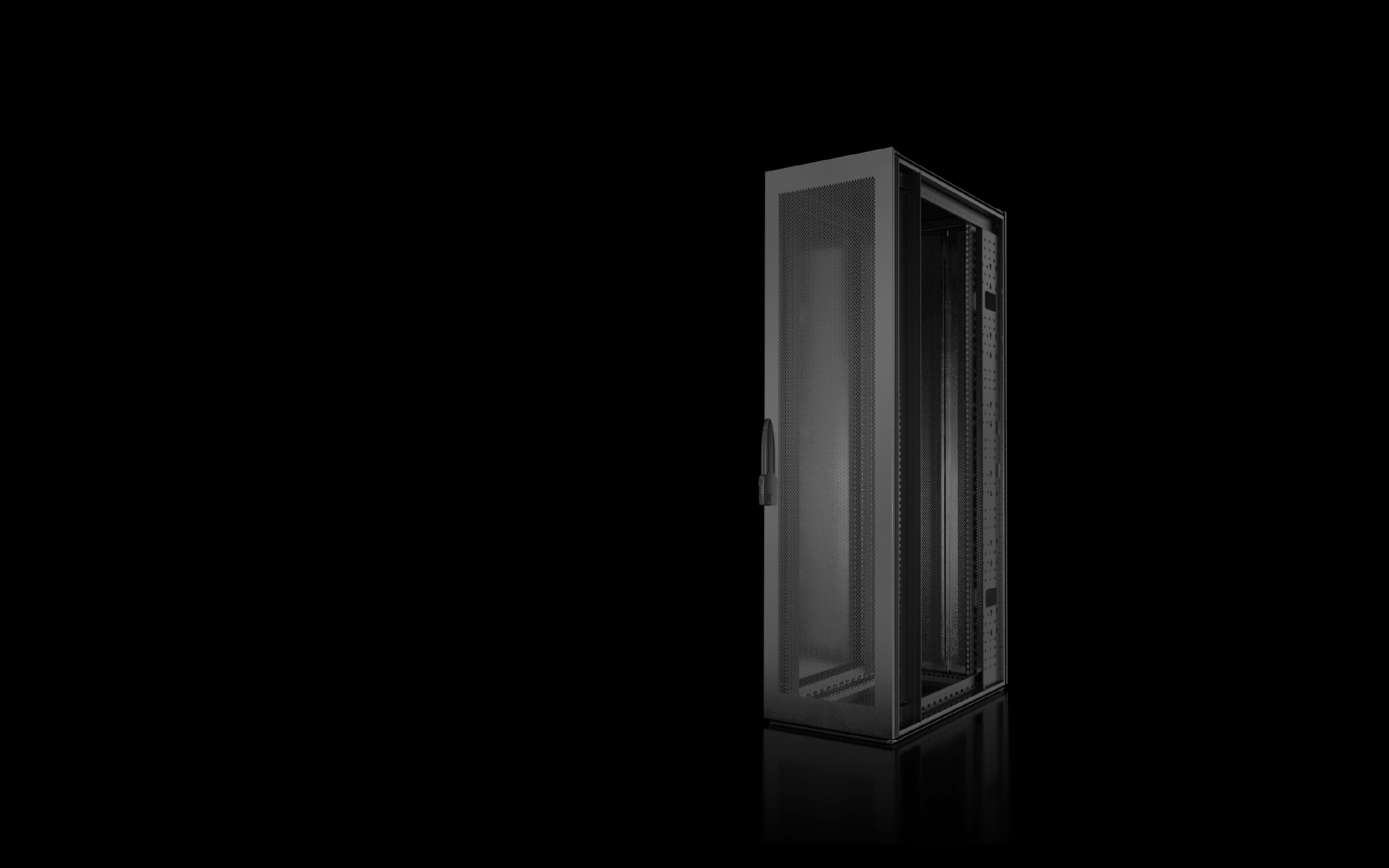

- TS IT Colo, 19" mounting angles, vented, WHD: 600 x 2200 x 1050 mm, 47 U
- Material
- Carbon steel
- Surface finish
- Enclosure frame: Dipcoat-primed
Interior installation: Dipcoat-primed
Doors and roof: Dipcoat-primed, powder coated
- General color
- RAL 9005
- Color
- Enclosure frame and panels: RAL 9005
Interior installation: RAL 9005
- Supply includes
- Enclosure frame TS 8 with front and rear doors
Carbon steel front door, ventilated, 130° hinges
Rear door made of carbon steel, divided, vented, 130° hinges
Lock front and rear: Comfort handle with 3-digit code and security lock 3524 E
Front and rear 482.6 mm (19") Z-rail mounting sections, depth adjustable mounting
Connection accessories for potential equalization with earthing point (supplied loose)
M6 cage nuts (Package of 50)
50 multi-tooth screws, conductive (supplied loose)
IPPC pallet
Roof plate, multi-piece, removable, with full depth side cable entry
Solid partition wall
Cable management wall, pre-installed
Vertical brush baffles
Dual PDU button mount bracket
Baying kit
Leveling feet (Package of 4 shipped loose)
- Dimensions
- Width: 600 mm
Height: 2,200 mm
Depth: 1,050 mm( Width: 23.6 ˝
Height: 86.6 ˝
Depth: 41.3 ˝ )
- Height units
- 47 U
- Distance between levels as delivered
- 742 mm( 29.2 ˝ )
- Number front doors
- 1
- Number back doors
- 1
- 19" attachment
- Front and rear 482.6 mm (19") Z-rail mounting sections, depth adjustable mounting
- Design of rear door
- Perforated Dual Door, Carbon Steel
- Design for front door
- Perforated Door, Carbon Steel
- Load capacity
- 15,000 N
- Note
- The door-opening angle may vary depending on site requirements or applications
- Packaging unit
- 1 pc(s).
- Net weight
- 339.947 lb
- Gross weight
- 339.947 lb
- Customs tariff number
- 9403200082
- UPC-Code
- 93837
