- Artikelnummer:
- IT 7100.120
- Utförande
- Open frame

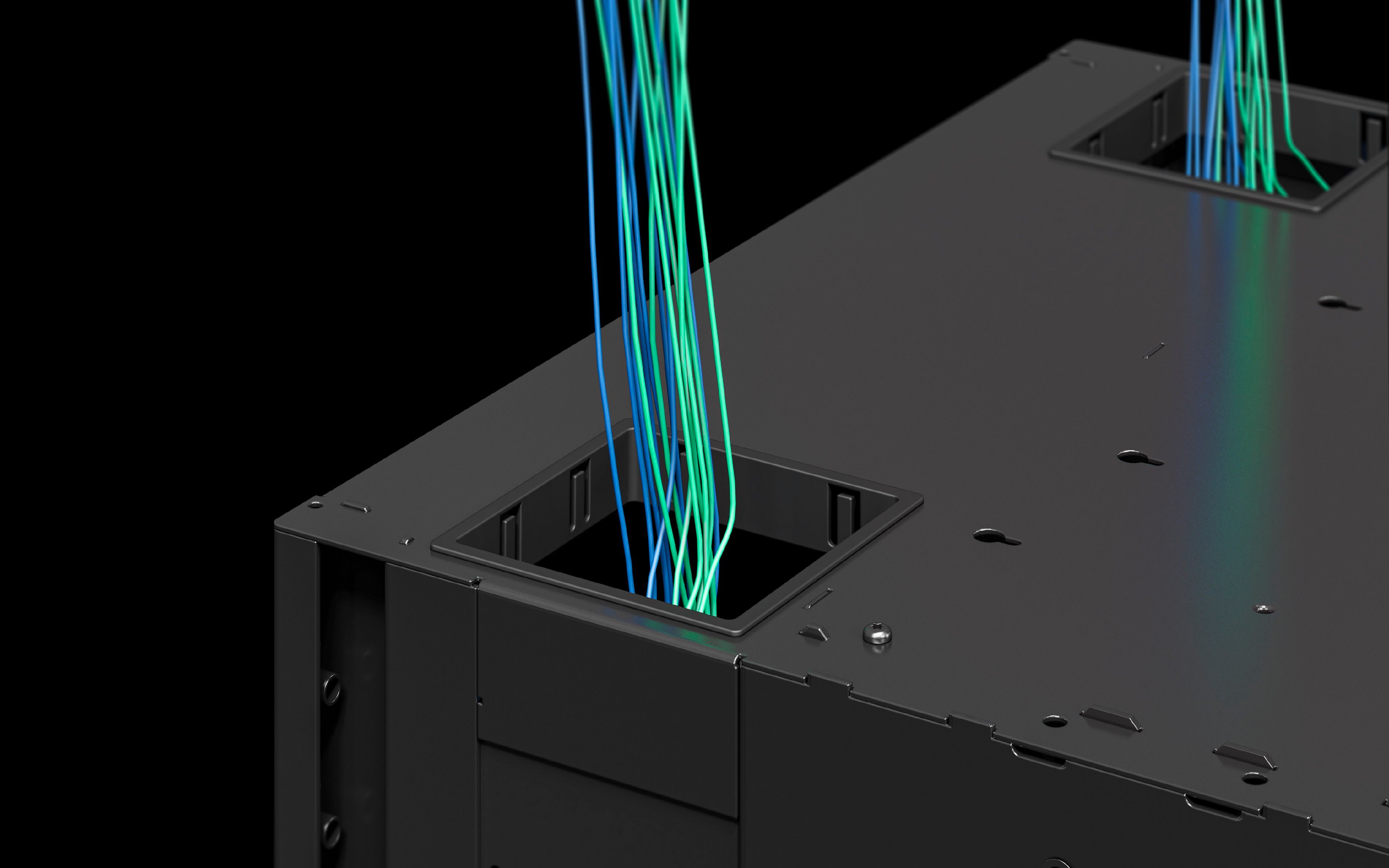

Prepared for cable entry in roof and base
Cable routing at the front, across the full height - Fördelar
- OCP ORV3 rack open on all sides and in line with Standard V3 of the OCP Community
- Prepared to accommodate 21" OCP components and direct contact on the busbar
- Rapid construction and service thanks to click-in fitting of the IT and IT OCP Power rail system

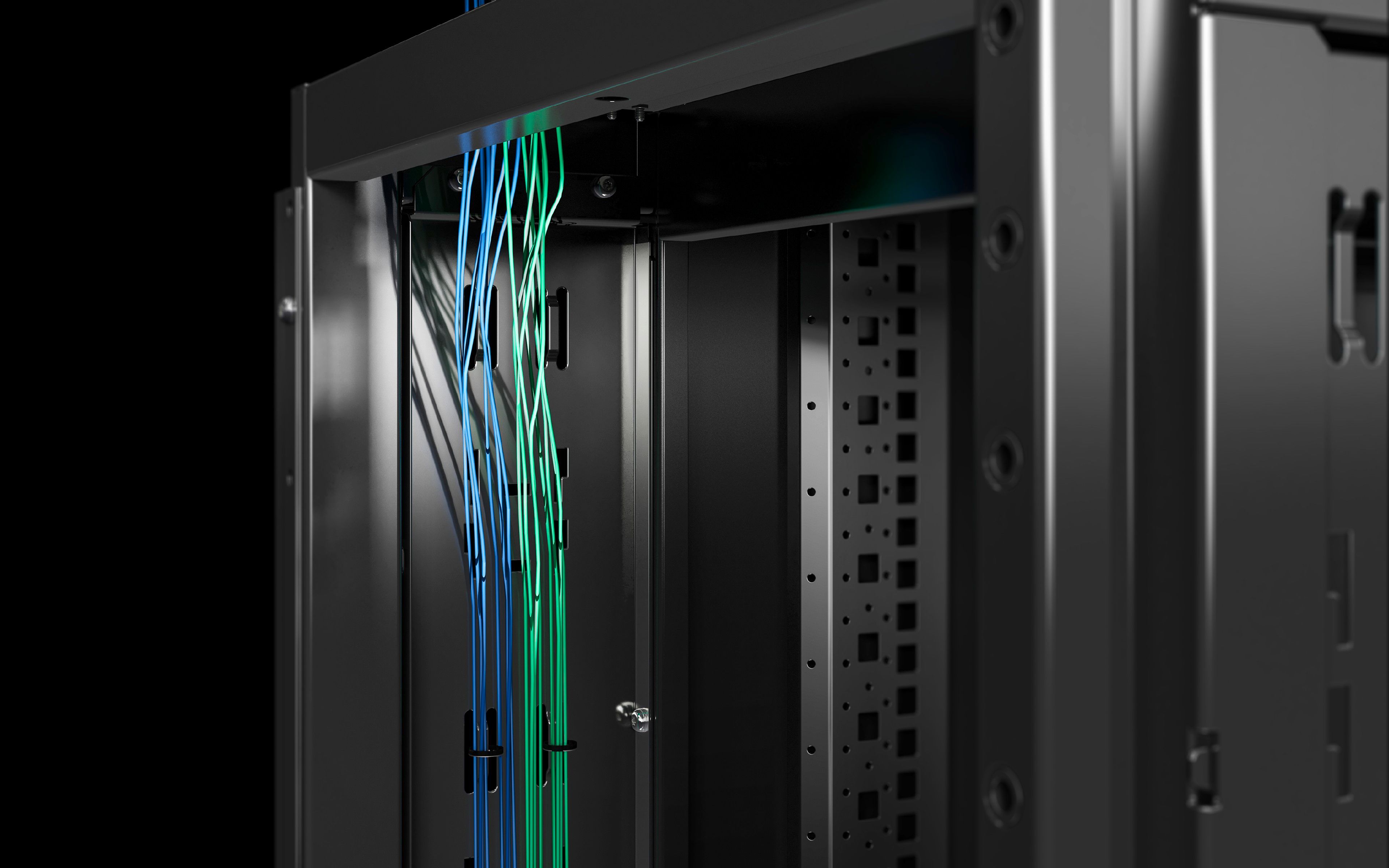

- End-to-end cable management in front rack over full height
- Ideal for high-performance computing and AI technology thanks to being ready for Direct Liquid Cooling solutions that are designed to dissipate the thermal load generated in the rack
- Bärkraft upp till 1400 kg

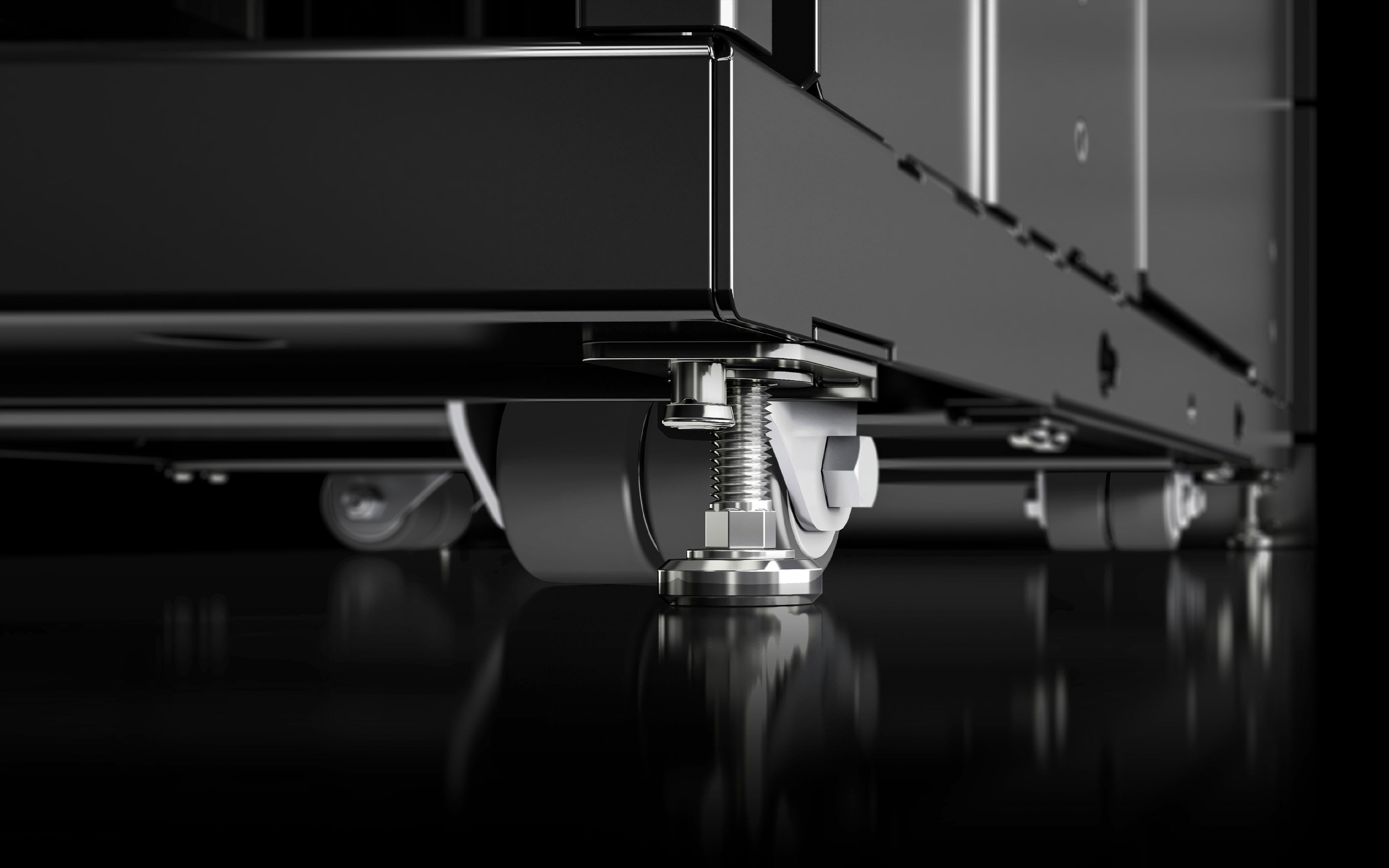

- Integrated heavy-duty castors make transportation easier and ensure ease of handling in the data centre
- Tekniska data
- Rated operating voltage: 48 V DC / power consumption 18 kW
- Material
- Stålplåt
- Ytbehandling
- Doppgrunderad, pulverlackerad på utsidan
- Färg
- RAL 9005
- Leveransens omfattning
- OCP ORV3 rack
OCP busbar for max. 48 DC/18 kW
2 bracing struts, pre-assembled
Levelling feet, pre-assembled
4 castors (freely rotating)
Ihopbyggnadstätning
Luftstyrplåtar - Dimension
- Bredd: 600 mm
Höjd: 2.286 mm
Djup: 1.068 mm - Höjdenheter
- 44 OU
- Belastning
- 14 000 N
- Grundmaterial
- Stålplåt
- Förpackningsenhet
- 1 st.
- Nettovikt
- 172 kg
- Bruttovikt
- 200 kg
- Tullvarukod
- 94032080
- EAN
- 4028177997738
- ETIM 9
- EC002499
- ETIM 8
- EC002499
- ECLASS 8.0
- 27180207
- Produktbeskrivning
- OCP ORV3 rack, 44 OU, WxHxD: 600 x 2286 x 1068 mm, RAL 9005
OCP ORV3 rack
Artikelnummer: IT 7100.120
OCP is an ambitious international community that aims to simplify and optimise IT infrastructure. The Rittal OCP ORV3 rack is OCP accepted and ready for immediate use. Simple modifications and enhancements can be made as and when required, thanks to the range of accessories. The OCP ORV3 rack can also accommodate a Direct Liquid Cooling (DLC) solution. Take your efficiency and performance density to a whole new level with this rack.
