Sealing efficiency

Sealing efficiency

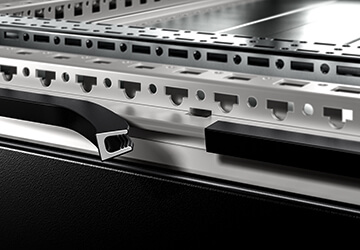

Fitted in a blink of an eye, the seal can be positioned precisely where needed and can be removed again at any time.

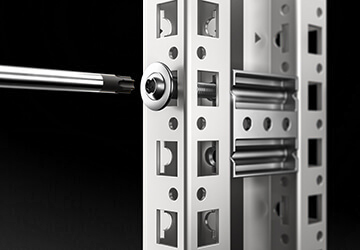

Clamping force

Clamping force

The baying connectors are screwed into place in the baying direction to bring the enclosures safely into position.

Overview

Overview

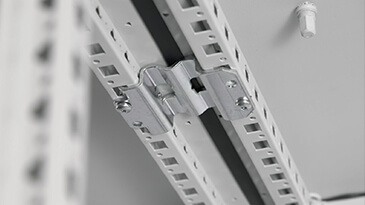

The baying connectors are designed so that all the baying scenarios that crop up in enclosure engineering can be covered with a maximum of just three different baying solutions. That means it is easier to make decisions and takes some of the hard work out of engineering.

Location flexibility

Location flexibility

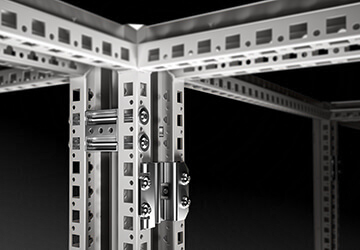

The option to bay enclosures on all four sides means users can adopt their own approach to tackling any imaginable space.

360°

More
simplification

Drive down complexity with simplified, more consistent baying technology for all applications.

To product
Process efficiency

Process efficiency

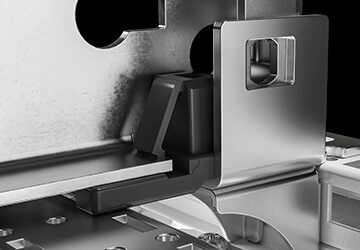

Thanks to its integrated clip, the mounting plate slide block can be easily removed and reinstalled without the need for tools, thus making work around the fully automatic machining process easier.

Additional benefits

Additional benefits

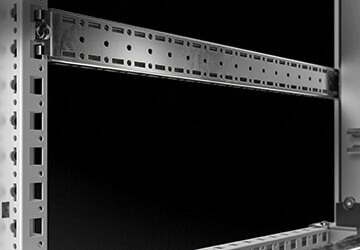

The practical mounting plate slide rail can be removed once the mounting plate has been inserted and reused at another position in the enclosure as a fully-fledged punched section.

More space

More space

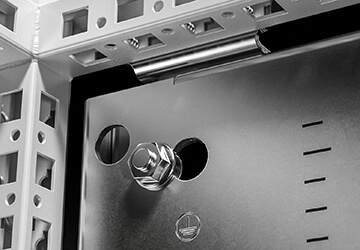

The option of using a special installation kit to install the mounting plate 20 mm deeper into the enclosure creates additional space in the depth of the enclosure.

Convenient fixing

Convenient fixing

The clip at the top end of the mounting plate holds it in place during one-person assembly until the plate can be screwed into position.

Digitisation

Digitisation

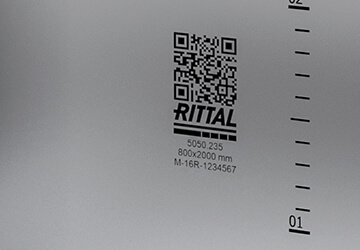

The QR code on all the panels that are to be machined simplifies their fully automatic incorporation into the production workflow and enables seamless, digital monitoring from goods receipt through to completion.

360°

More
ease of assembly

More time savings, installation options and ease of assembly thanks to improved installation kits, including for dynamic loads.

To product
Flexibility

Flexibility

The punched sections feature an optimised mounting bracket and are simply screwed into place, which makes installation easier where space is limited and even supports retrofi tting.

Mounting options

Mounting options

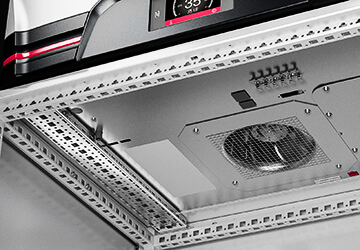

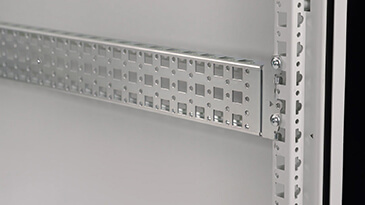

Using the standard punched section, including to support the roof and side panels, simplifies engineering and assembly, and relieves pressure on the parts warehouse.

Strength

Strength

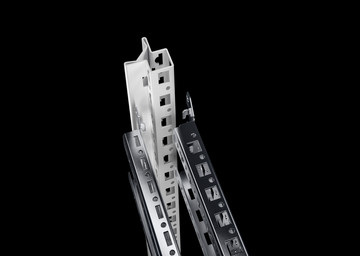

As both punched sections can be installed at the same height, there is more stability and strength at the inner and outer level, e.g. for heavy assemblies.

Ease of assembly

Ease of assembly

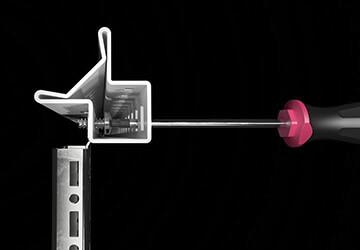

The frame profile allows users to install elements working through the profile from the outside, making it much easier to retrofit punched sections in places that can no longer be reached from the inside.

Cost-efficiency

Cost-efficiency

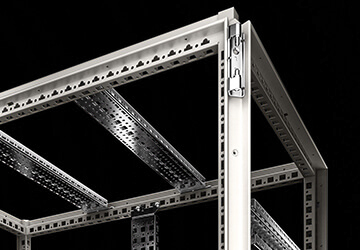

The frame profile, which is identical horizontally and vertically, enables consistent use of standardised punched sections and rails, which reduces the number of part variants by up to 40 per cent without losing any functionality.

Stability

Stability

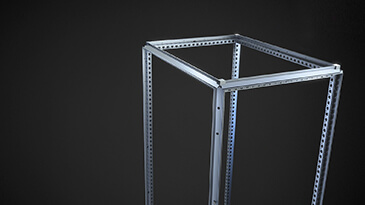

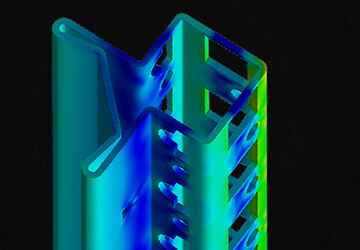

Thanks to its ingenious geometry, the patented special profile ensures excellent stability and torsional rigidity.

Safety

Safety

The integral rain channel prevents the long-term build-up of moisture at the seal.

Levels

Levels

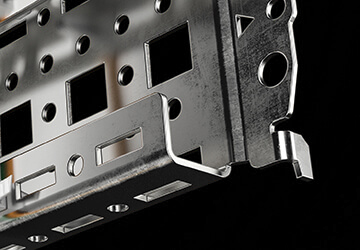

The special C-fold of the punched sections and rails creates an additional outer mounting level.

Installation options

Installation options

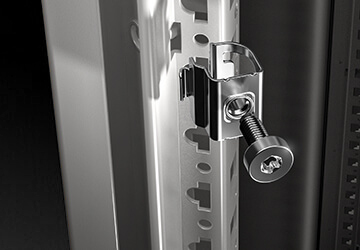

The continuous pattern of square punching supports the use of M6/M8 cage nuts and thus creates more mounting options at all profile levels.

Stability

Stability

The corner piece with welded base frame makes it easier to create a fixing with the floor and base and improves stability.

360°

More
system benefits

More assembly-friendly and efficient engineering thanks to a frame profile with a 25 mm pitch pattern that is symmetrical across all levels and can be accessed from all sides.

To product
Usable height

Usable height

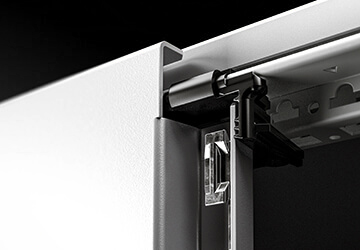

The flat centre seal does not obstruct the movement of the swing frame or other components.

Access

Access

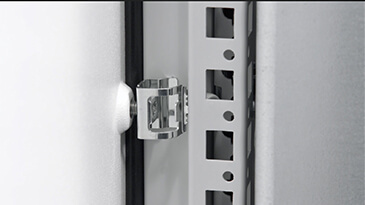

The panel holders can also be easily retrofitted and are clipped into place from the outside without having to first remove previously installed rear panels.

Accelerator

Accelerator

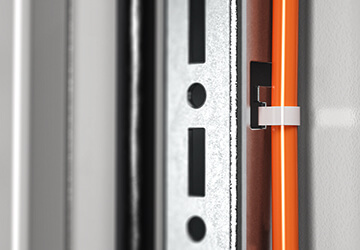

The series-standard T-head punching in the tubular door frame speeds up the process of laying cables in the door. Cables can be fixed to the door extremely quickly, even when using conventional commercial cable ties.

Simplification of work

Simplification of work

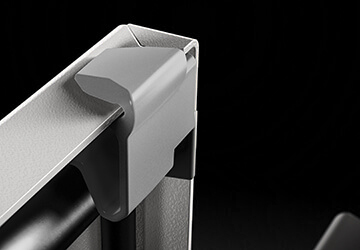

In the case of one-person assembly, the positioning aid for side and rear panels provides a user-friendly and ideally suited preliminary fixing so that the panels can then be screwed into place using both hands.

Ease of assembly

Ease of assembly

The innovative clip mechanism of the panel holders speeds up the installation of side panels.

Time savings

Time savings

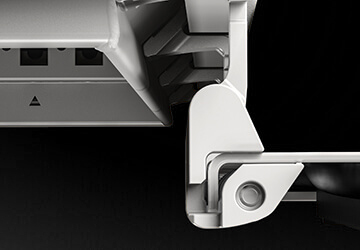

There is no need to machine the door when installing the 180° hinge, which reduces the installation time during retrofitting by up to 30 minutes per door.

Expansion options

Expansion options

Thanks to its ingenious geometry, the special profile ensures excellent stability and torsional rigidity.

Digitisation

Digitisation

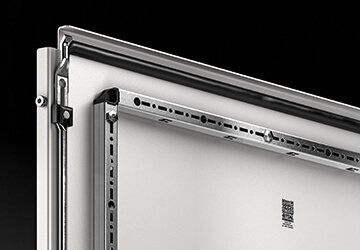

The QR code on all the panels that are to be machined simplifies their fully automatic incorporation into the production workflow and enables seamless, digital monitoring from goods receipt through to completion.

Time savings

Time savings

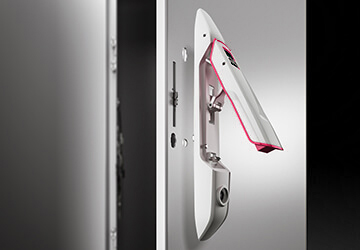

The simple, tool-free exchangeability of lock systems such as the comfort handle reduces the necessary installation time by up to 50 per cent.

Simplification of work

Simplification of work

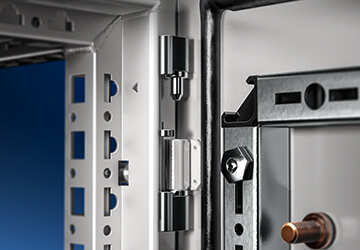

Thanks to the new hinge, doors can be installed and removed incredibly easily and without needing any tools, thus eliminating the need to separately lock and unlock hinge bolts.

Flexibility

Flexibility

The opportunity to change the opening direction of main and adjacent doors on double-door enclosures according to needs, creates added flexibility when installing cooling units in enclosure doors and prevents collisions between equipment and doors.

360°

More
time

More flexibility, easier installation and better cost-efficiency thanks to ingenious hinge technology, fast-action interchangeable and installable closure technology and saving on machining processes.

To product
Time saving

Time saving

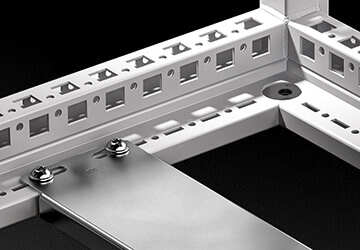

The simple screw fixing of the gland plates is quick to implement and also automatically creates potential equalisation in one single step.

Ease of use

Ease of use

A direct screw connection between the base/plinth components and the enclosure automatically creates potential equalisation without having to incorporate any earth straps.

Space for cables

Space for cables

The large opening in the stable base frame makes it much easier to lay cables.

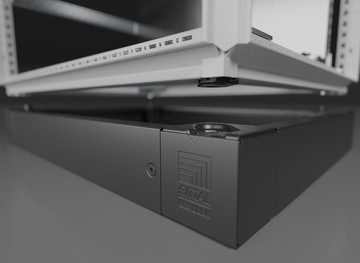

Precision

Precision

The centring aid for base/plinth mounting on the enclosure frame ensures the enclosure is positioned precisely on the base/plinth and also safeguards the IP protection category and frame protection when used without a base/plinth.

Simplification of work

Simplification of work

Thanks to their series-standard marking, the earthing points help users easily find their bearings and speed up work.

Cable care

Cable care

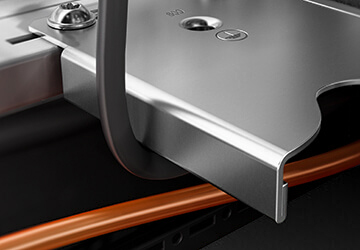

Thanks to rounded edges, cables routed under the enclosure are not at risk of being damaged.

Variability

Variability

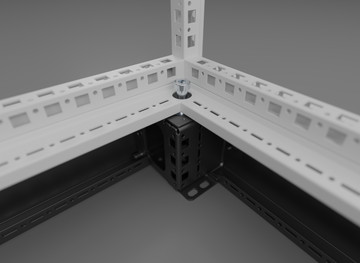

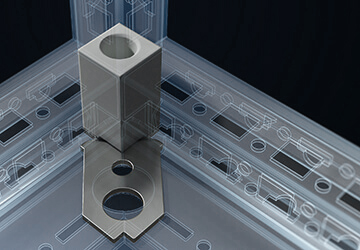

Enclosures can be fastened to the base/plinth or subsurface via either an M12 thread in the corner piece or the stable floor design.

360°

More
space

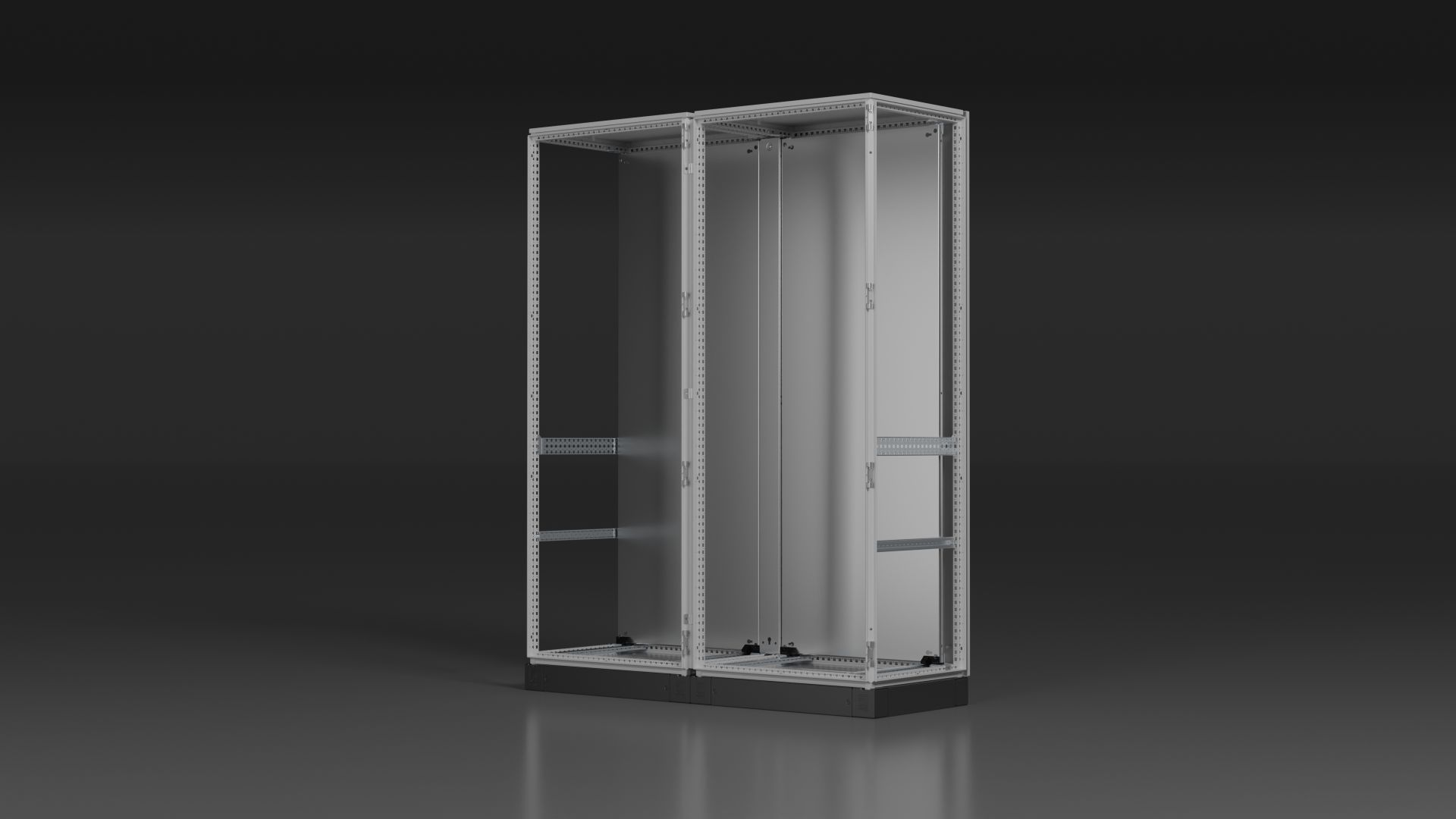

Make better use of space, simplify work and save time thanks to the outstanding compatibility of the enclosure and base – even when baying enclosures and fitting accessories

To product

Maximum
data quality

Straightforward workflow thanks to software-based engineering

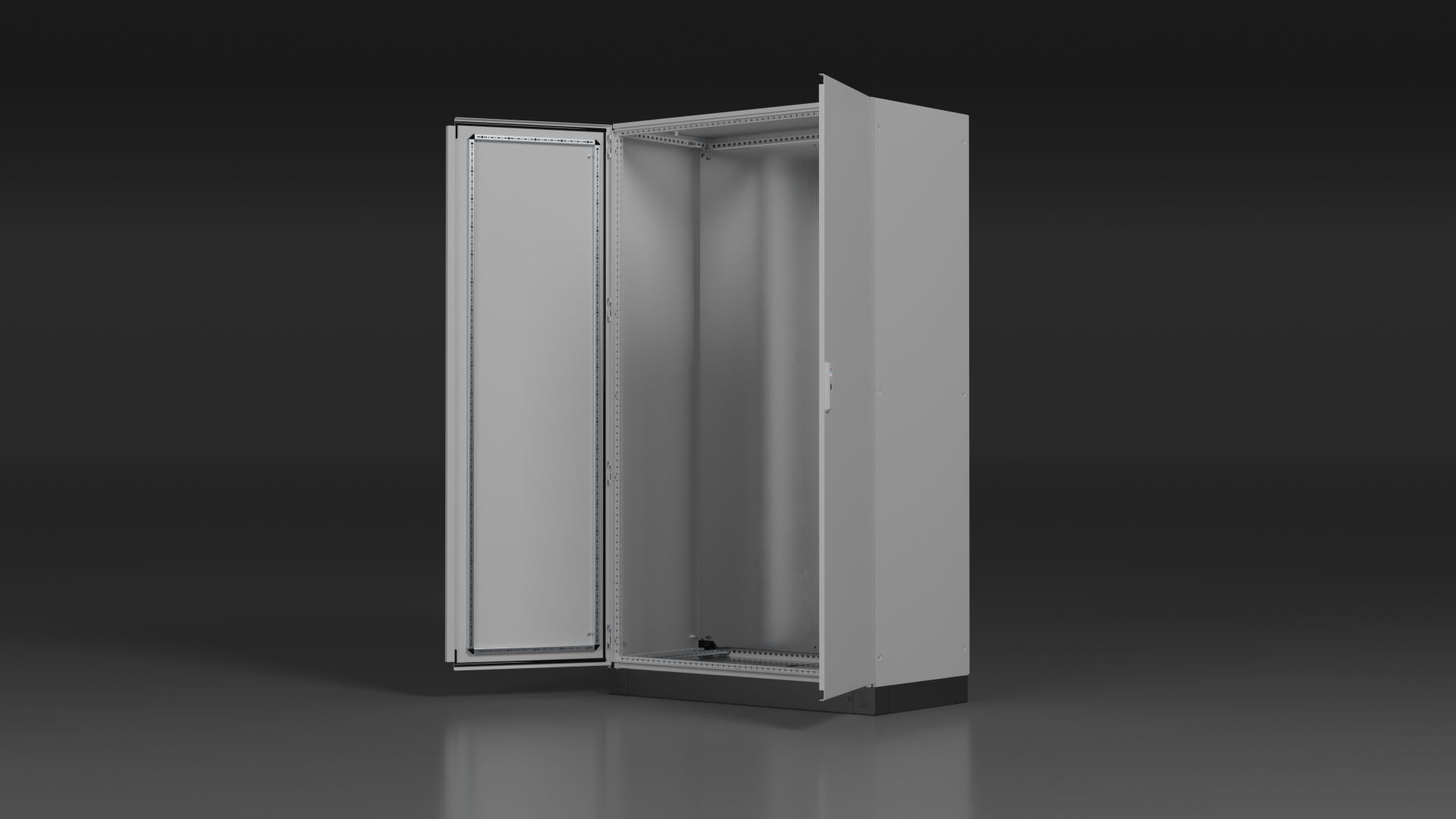

There are always two versions of this enclosure – real and digital. The maximum data quality of the VX25 ensures greater flexibility for configuration, manufacturing and assembly. And with the “digital twin”, the person who knows your company best – you – can plan, order, process and much more besides.

VX25

Minimal
complexity

More options, more efficiency, less effort:

This is thanks in particular to a frame profile with a 25 mm pitch pattern that is symmetrical across all levels. The VX25 is also accessible from all sides – even from the outside. Yet even though the options for expansion, mounting and baying are unlimited, it couldn’t be easier to use.

VX25

Significant
time savings

Perfect features for even greater efficiency:

This enclosure is especially good at saving time. Because with its optimised access and even more comfortable assembly, the VX25 has also been constructed to allow partially tool-free assembly. It means you can design your work processes even more easily, better and faster – and also more safely, by the way.

VX25

Surprisingly simple
Assembling the VX25

Our videos show you how quick and easy it is to assemble the VX25 – making everything even quicker and easier.

Watch video

Videos & Downloads

VX25 frame The frame profile enables a completely obstacle-free installation.

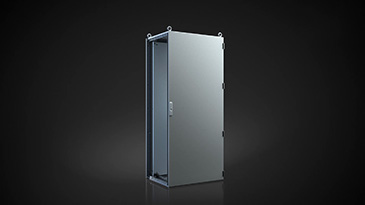

VX25 symmetry Horizontally and vertically identical frame section.

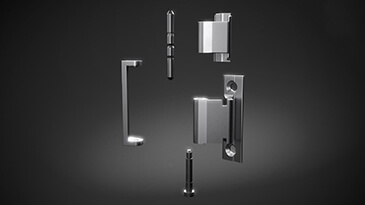

180° hinge 180° hinge reduces the installation time.

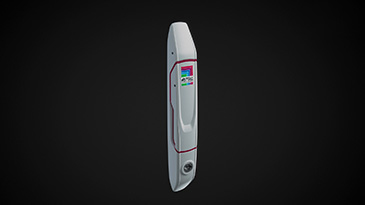

VX25 comfort handle Simple, tool-free exchangeability of the comfort handle.
Swapping the door hinges With the hinge, doors can be installed and removed easily and without any tools.

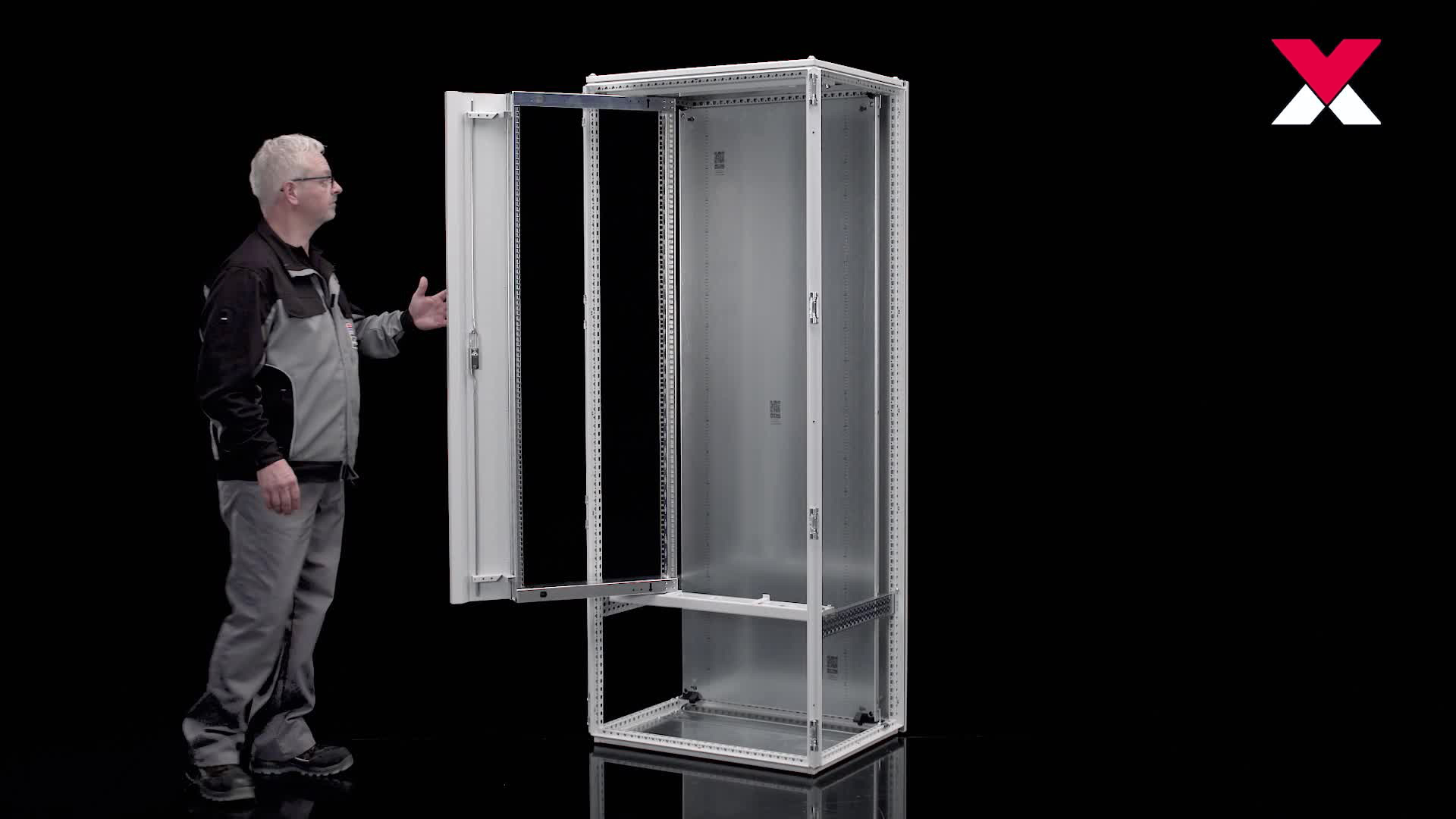

Simple mounting of the side panel Positioning aid for side and rear panels provides one-person assembly.
Simple baying technology All baying scenarios can be covered with just three baying solutions.
Mounting the punched section Learn about mounting the punched sections.

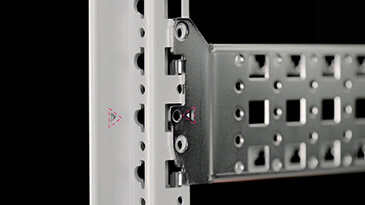

New integrated positioning aid Precise hole counting offers an easy point of orientation.
VX25 baying The VX25 offers the option to bay enclosures on all four sides.

Everything at a glance
And in detail.

The VX25 can do a great deal. Further information and links can be found here:

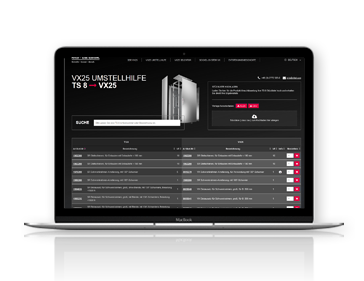

VX25 conversion assistant

VX25 conversion assistant

The conversion assistant enables you to convert TS products to the new VX products quickly and easily

Learn more
VX25 selector

VX25 selector

The VX25 selector makes it easy for you to select Rittal enclosures and the appropriate accessories for your application

Learn more

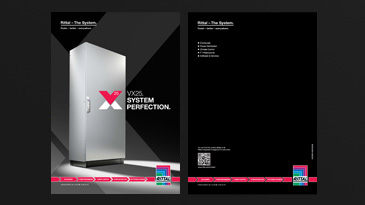

VX25 in the product catalogue

VX25 in the product catalogue

Our product catalogue has a full range of information about the new large enclosure system.

Learn more
The new base/plinth system VX

The new base/plinth system VX

See our new base/plinth system VX for yourself.

Learn more

Contact

Any questions about the new VX25 large enclosure system? Then get in touch. We’ll be only too happy to help you with any questions about the VX25.
